Keyboard Solution/ Console/ B520
Product Description

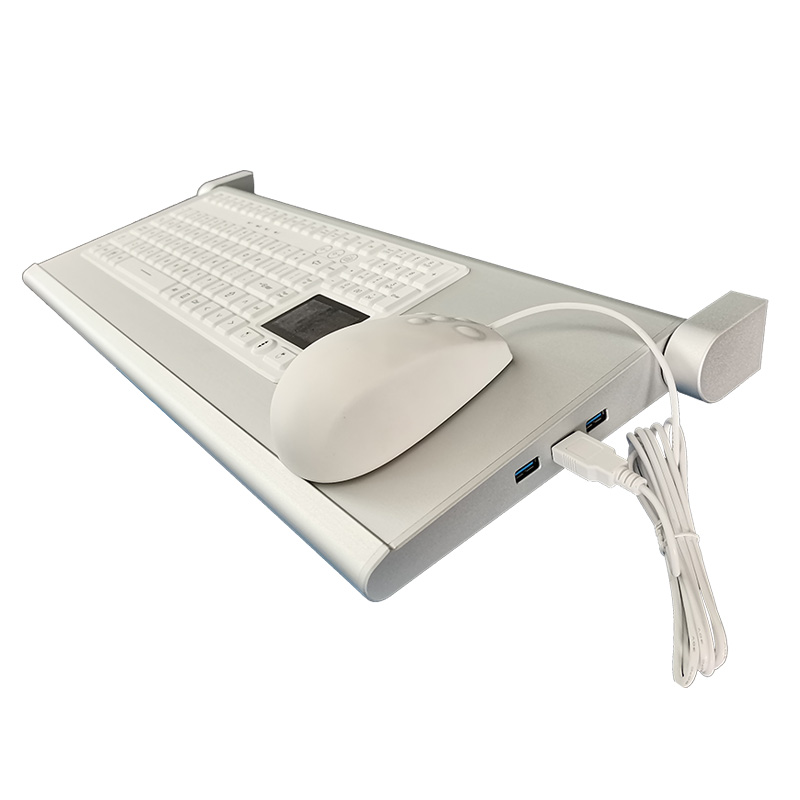

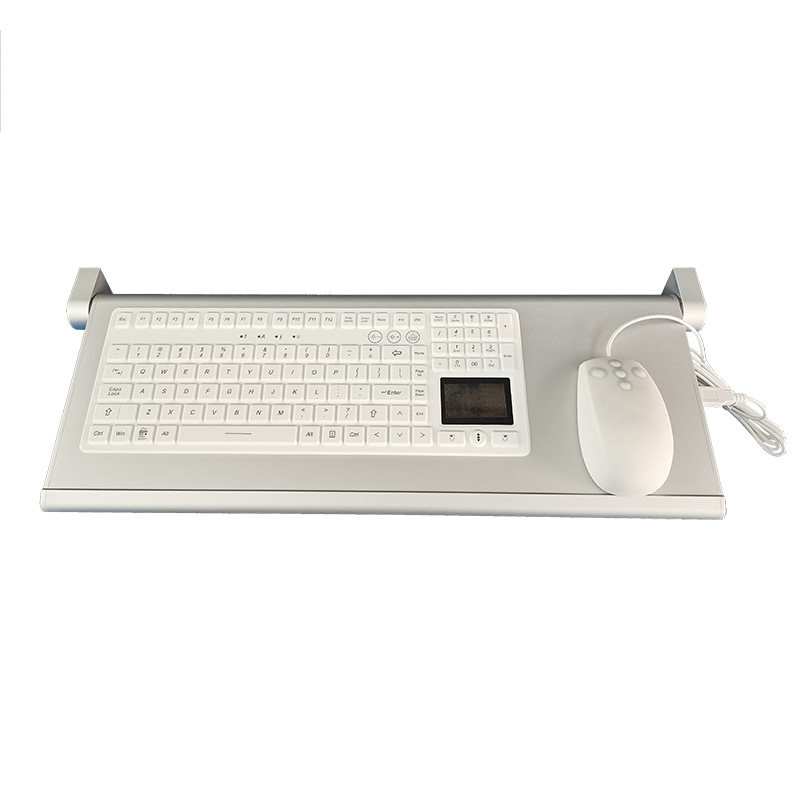

Product Name: Mountable Keyboard and Magnetic Mouse with Keyboard Tray / Console
Product Model: B-G10-M20-HUB-DVD-BL_MG_TR_L520_BP_DH
Product Description: This Console mainly consists of a mountable keyboard, Magnetic mouse, and keyboard tray. It is usually used in digital operating rooms and other places with special requirements for cleaning and disinfection.
Product Features
Required Components: Keyboard Tray like B/E/S/T/EP with different appearance, Mountable Keyboards like K10/G10/G60 with different Switching Technology, Wired and wireless mice like M10/M20 with different button layouts. These three components are all necessary, and you can jump to the related pages to get the details.
Optional Components: HUB/DVD/TR/BL/MG/BP/DH
HUB: HUB with 3 USB3.0 Interface
DVD: Support to read and write
TR: Slidable Mouse Tray in the right side of Keyboard Tray, mainly to save space
BL: Keyboard with Black Light function
MG: Mouse with Magnetic function, Magnetic attraction to Keyboard Tray
Lxxx：The length of Keyboard tray, like L400 means 400mm
BP: Back Panel
DH: Disk Holder
ODM Components: Other mountable sensors are available.
Material: The keyboard tray is mainly composed of aluminum, corrosion-resistant, and has passed the salt spray test for 36 hours.
Protection: The lip of Keyboard Tray mounted with K10/G10/G60 are sealed with glue professionally and up to IP67. HUB, DVD and TR are not claimed to be waterproof. AS for the Protection of Keyboard & Mouse, please jump to the related pages to get the details.
Cleaning and disinfection: The mountable keyboards are easy to wash, wipe, and disinfect with low key travel and lock-mode.
Cable Connection: internal wiring, no exposed wires
Installation: 4 screws from the back
Slope of Keyboard: Appro. 90°while close and -14°while open (Relative to the horizontal plane)
Rotation Damper: Torque attenuation ＜30% @ 5k Rotation Testing
TEST: CE, FCC Class15, Part B, EN60601-1-2, Antibacterial, RoHS
Warranty: 3 Years
